- Overview
Intelligent long workpieces beveling solution

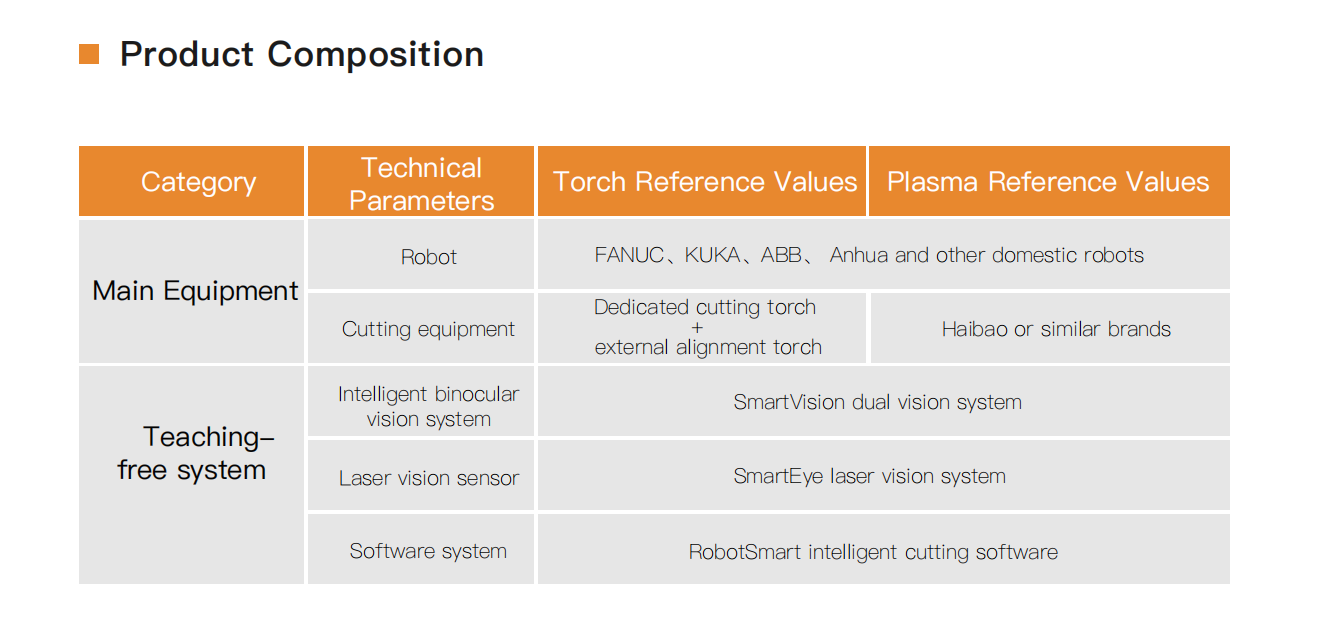

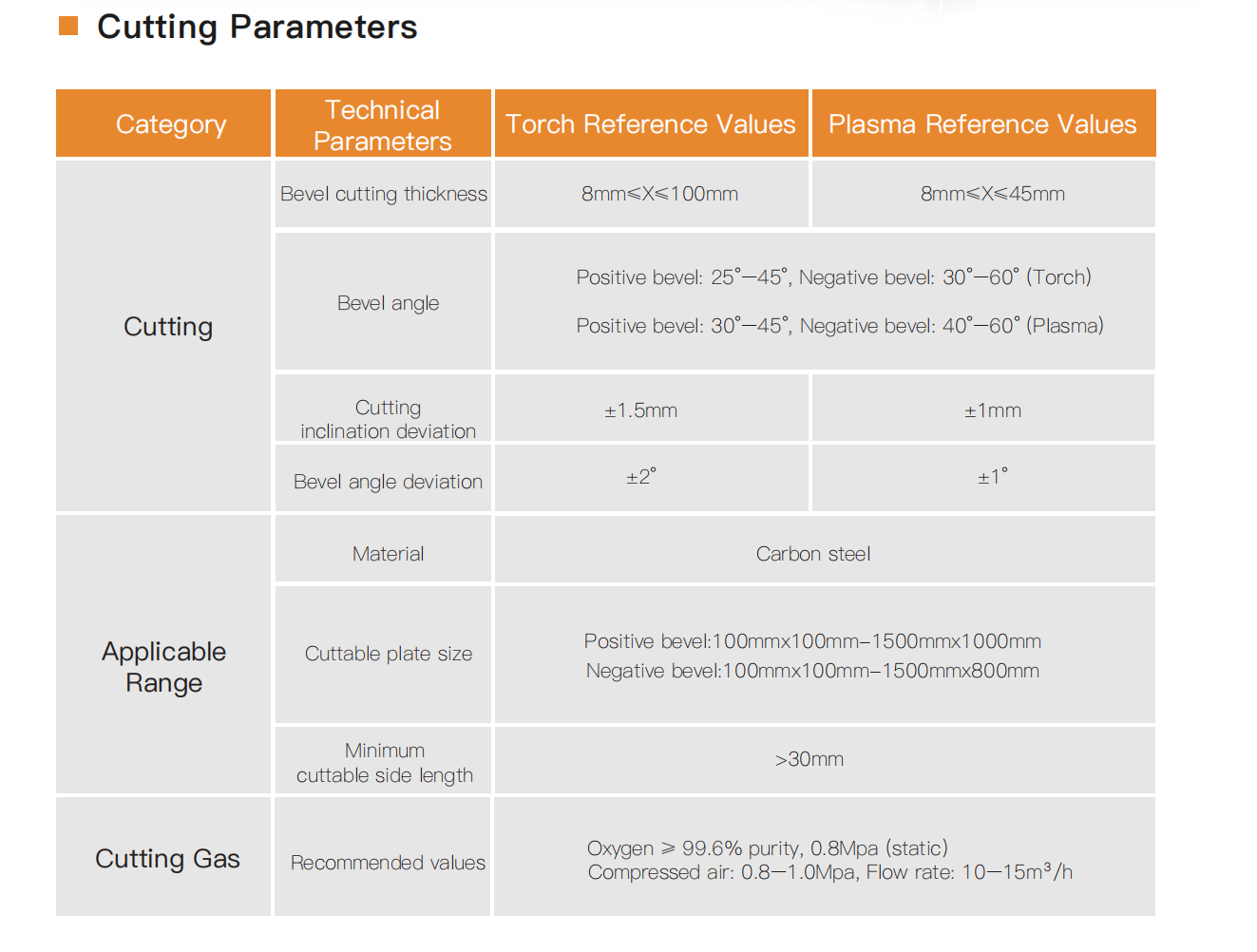

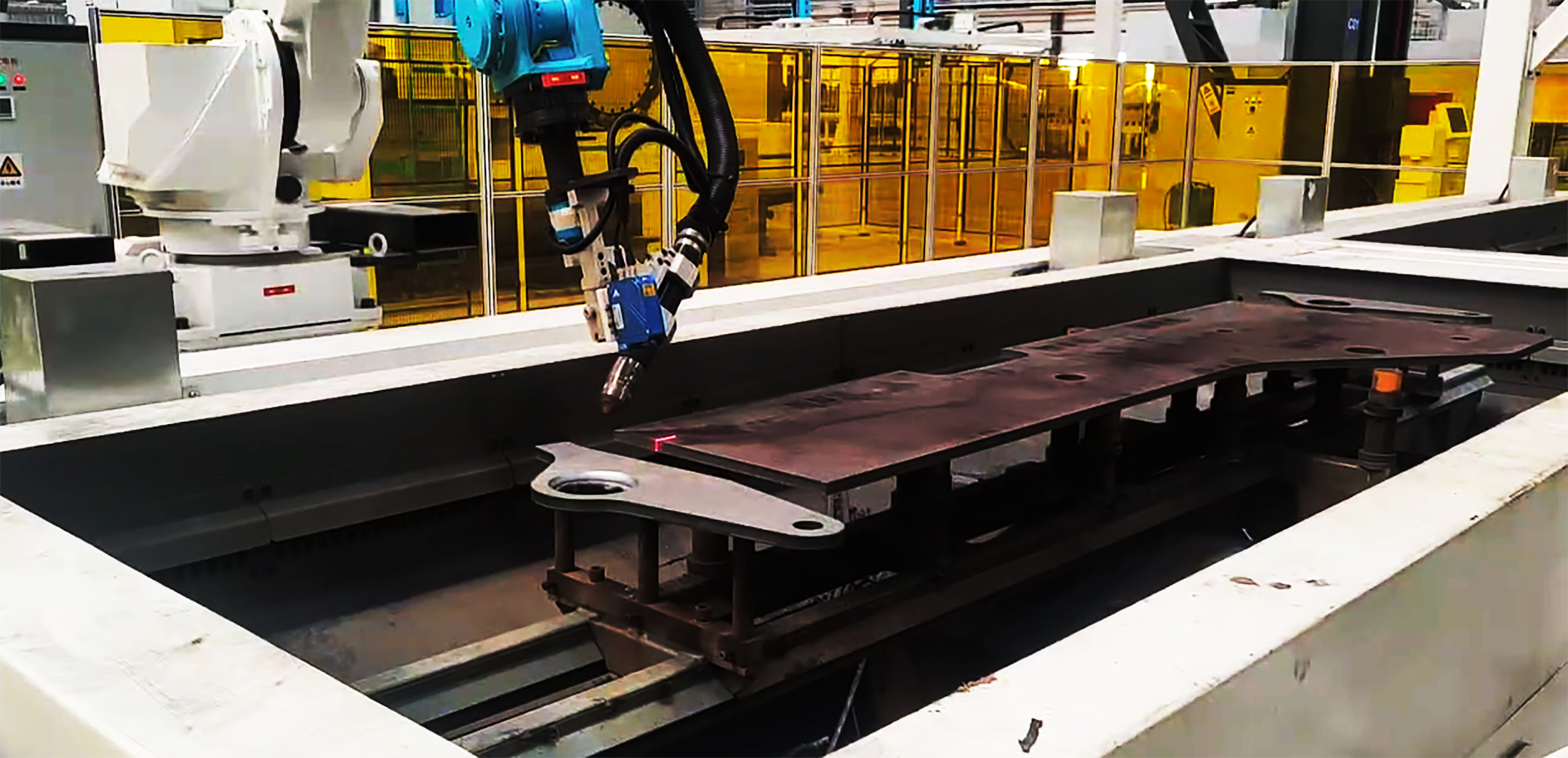

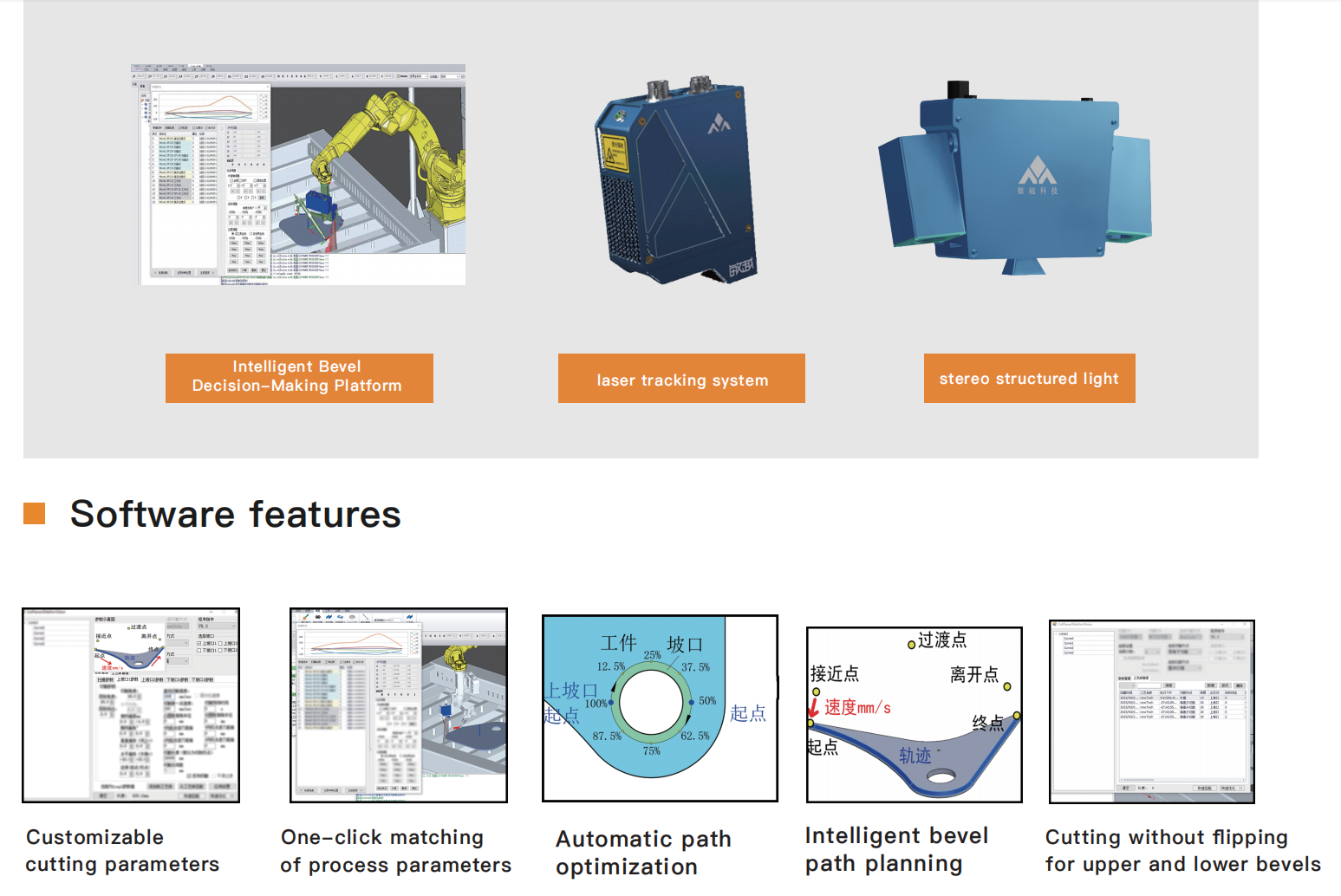

The SmartCut intelligent bevel cutting workstation leverages MinYue's years of expertise in CAD/CAM, robotics, 3D vision, and artificial intelligence. Built upon MinYue’s self-developed intelligent decision-making system RobotSmart and 3D
vision sensors, it introduces a model-driven and vision sensor-based teach-less automatic programming method, enabling autonomous robotic cutting. This technology addresses various issues in traditional industrial robot bevel cutting. The complete system consists of an industrial robotic arm, binocular structured light vision sensors, an industrial controller (integrated with RobotSmart intelligent cutting software), and cutting
.
SmartVision 3D binocular vision camera
Provide brain and eyes to robot.
Product Model

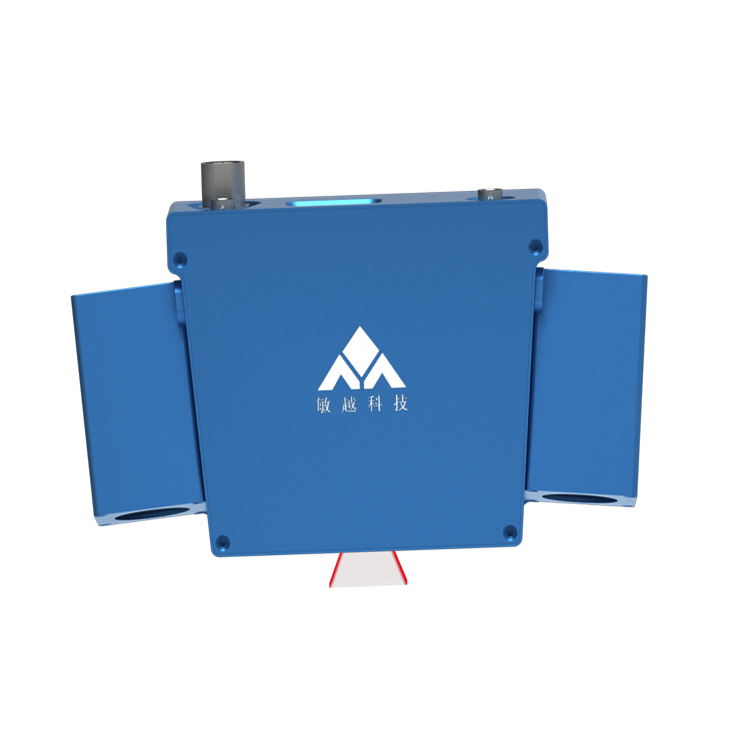

SmartVison series products are binocular structured light vision sensors developed by Minyue Technology for industrial robot welding and cutting applications. There are two models general SmartVison WR and high precision SmartVision HA depend on accuracy and range.
Large view 3D vision camera using line laser assisted positioning, through the binocular stereo vision system to obtain the object three-dimensional spatial coordinates。
High-precision 3D scanning of object contours than reverse modeling .and compare it to a standardized 3D model，Realization of positioning, defect detection, dimensional measurement, object gripping and other functional applications.
It has outstanding advantages in rapid detection of high-speed motion scenes, anti-glare, anti-reflection, indoor and outdoor scene applications.
Main Features:：
1. Resistant to strong light, anti-reflection, adapt to a variety of complex environments.
2.High precision, high frame rate, and refined data management.
3.Machine intelligence for easier implementation.
4.A variety of options to meet the needs of diverse scenarios.
5.Large depth of field, grand field of view, to meet a variety of field of view applications。
6.Fast calibration and flexibility.
Main parameter
| PROJECT Number | Parameter | SmartVison WR | SmartVision HA |

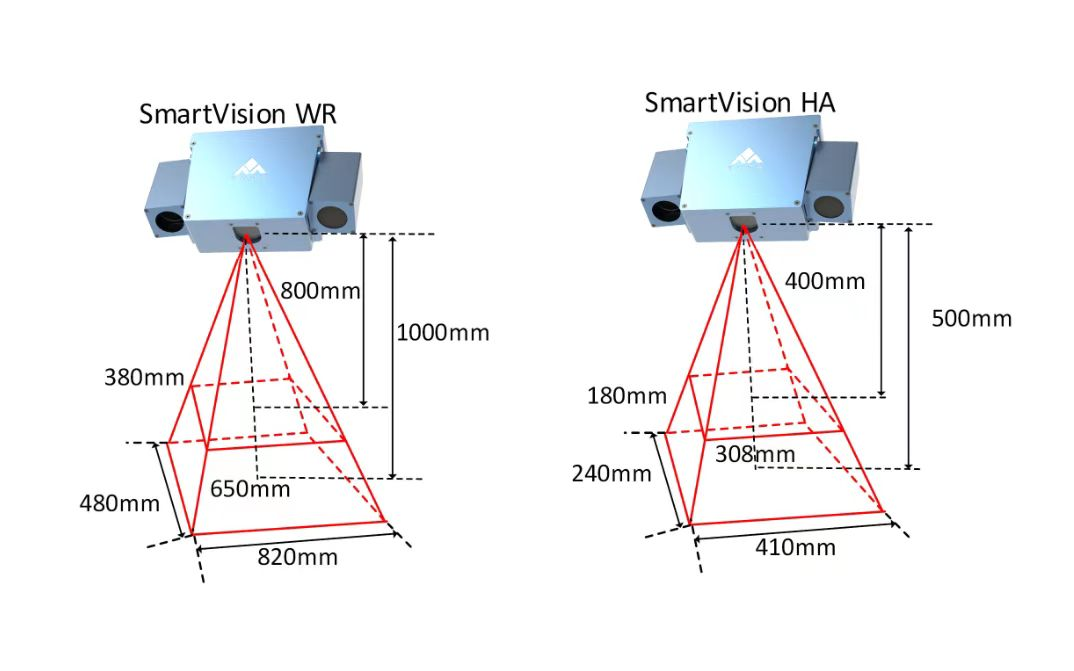

| 1 | Operation distance(mm) | 800-1000 | 400-500 |
| 2 | Near field of vision (mm) | 650*380 | 308*180 |
| 3 | Far field of vision（mm） | 820*480 | 410*240 |
| 4 | Resolution (Pix) | 1624*1240 | 1624*1240 |
| 5 | Pixel (MP) | 2 | 2 |
| 6 | Measurement accuracy (mm) | 0.5 | 0.2 |
| 7 | Calibration accuracy (mm) | 0.03 | 0.02 |
| 8 | Collection time (s) | 1 | 1 |
| 9 | Overall size (mm) | 233*76*121 | 233*76*121 |
| 10 | Weight (kg) | 3 | 2 |
| 11 | Operating temperature range (℃) | 0~45º | 0~45º |
| 12 | Communication port | Gigabit Ethernet port | Gigabit Ethernet port |
| 13 | Operating voltage (V) | 12 | 12 |
| 14 | Protection grade | IP65 | IP65 |
Product characteristics
1.It can output high-quality 3D data for a variety of metal workpiece, which can meet the diverse requirements of anti-environmental light, high precision, high speed and small volume in different requests.
2.Can be high precision, high speed, customizable, the field of vision can meet the actual needs of typical scenes.
3.It integrates 3D vision, deep learning, motion planning and other technologies, adopts graphics without programming which can carry out modular drag, wiring, parameter configuration and non-programming functions.
4.Adopt aluminum alloy material, fully enclosed shell, protection class is IP65, 24V operation voltage, it has passed CEFCCVCCI and RoHS certification. Can better cope with dust, vibration, moisture, electromagnetic interference and other harsh environment.
