Short distance laser vision-SmartEye WR

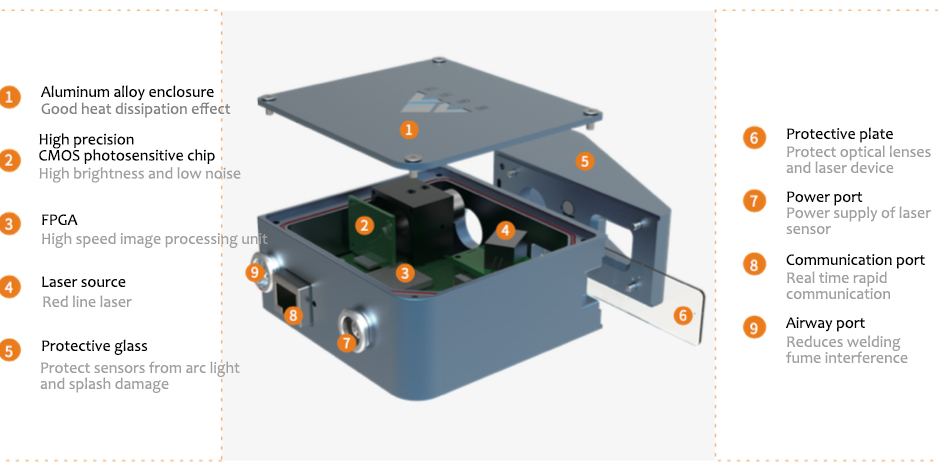

System composition

SmarEye WR laser seam tracking system is a 3D laser vision system for robotic welding developed by Beijing Minyue Technology Co., LTD. It supports robot brands such as KUKA, Yaskawa, ABB, Fanuc, Kawasaki, Siasun, Guangshu etc . The system consists of three parts: laser sensor, control host and software.

1. Laser sensor is used to collect data

2. Protective glass is used to protect optical lenses

3. Fixed holder is used to install the laser sensor on welding torch

4. Control host is used to configure and control laser sensor operation

5. Communication cable is used to connect the sensor to control host

6. Protective shield is used to protect sensor from arc light and splash.

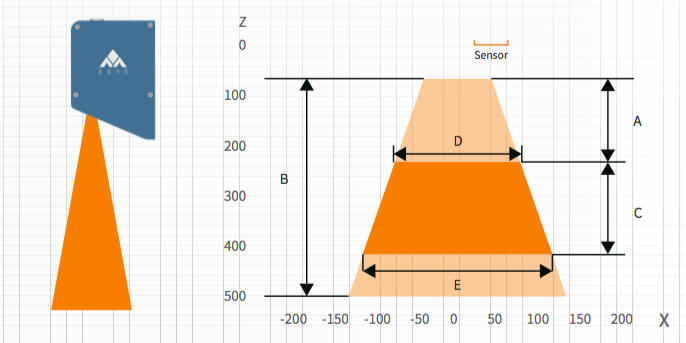

Main parameter

A(mm):80 B(mm):180 C(mm):70 D(mm):50 E(mm):70
